Closed loop heat pump dryer unit

High Efficiency And Energy Saving

built-in waste heat recollection system, low operating cost, save more than 50% of cost compared with heating using coal or natural gas

Precise Temperature Control

patented three-media heat exchanger technology, enables precise temperature control under the dehumidification mode

Wide Temperature Range

30-80°C drying temperature,12 adjustable levels meet the drying requirements of the most materials

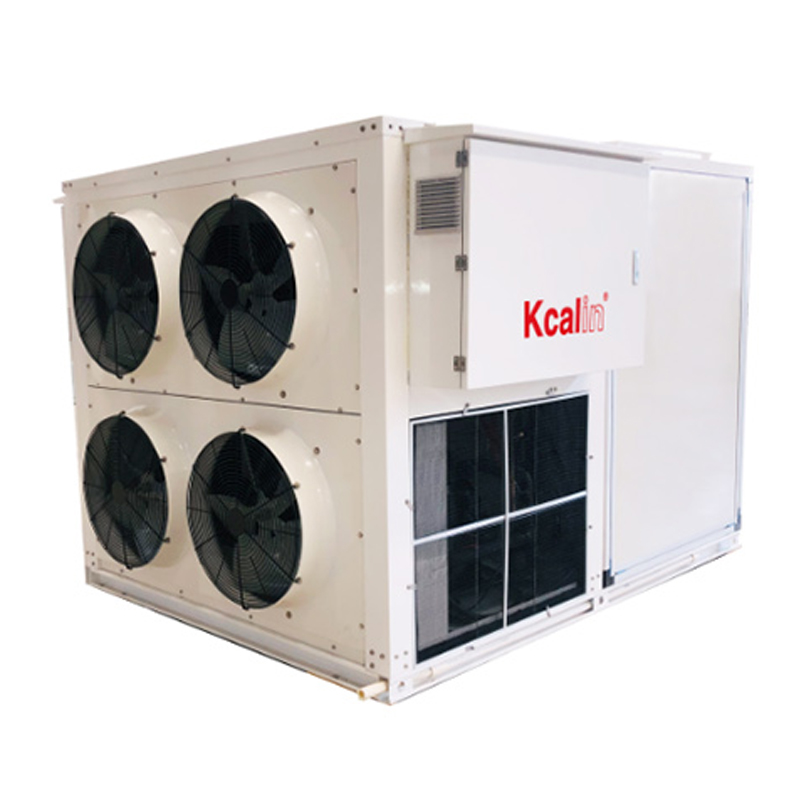

Kcalin air energy heat pump drying unit

The Kcalin closed cycle drying air source heat pump unit recovers the heat of water vapor evaporated after the materials in the drying room are heated by the compressor and condenses into water to dry the materials. It has improved the disadvantages of high energy consumption, high pollution and manpower consumption of traditional drying products, realized the characteristics of high energy utilization rate, zero emission of pollution, all automatic operation, efficient and stable operation of units, provided excellent products and system solutions for traditional drying industries such as coal and gas, and effectively promoted the realization of carbon peak and carbon neutralization goals.

Product characteristics of Kcalin dryer

1. Integrated modular design concept, small floor area, convenient for construction and installation;

2. It has both open loop and closed loop modes, and is free from the influence of external environment and can be used 24/7;

3. It can realize low temperature air closed circulation drying, constant temperature and humidity, and the drying effect is better;

4. Useful volatile components in recyclable materials;

5. Energy saving and environmental protection effect is obvious and friendly to the environment;

6. Efficient, continuous and stable operation, reducing operation costs;

7. Effectively reduce operation cost and improve drying efficiency;

8. LCD touch screen control, friendly human-computer interaction and convenient operation;

9. The unit has strong applicability and is suitable for drying most materials./h3>

Parameters of Kcalin drying unit

Model	Unit	KLHG-P/GF-40/130Ⅰ	KLHG-P/GF-67/22Ⅰ
Rated heat	Kw	40	67
Power supply	V	380	380
Rated power	K w	13	22
Rated current	A	26	44
Maximum power	Kw	16	26.4
Maximum current	A	32	52.8
Rated dehumidification capacity	kg/h	36	60
Rated drying temperature	℃	60	60
Maximum drying temperature	℃	75	75
Operating ambient temperature	℃	-15～40	-15～40
Weight of main engine	kg	540	1100
Host size	mm	201013441650	201024001850
Auxiliary electric heating	kw	12	12
Maximum working pressure	Mpa	3.0	3.0
noise	dB(A)	65	65

continued

Model	Unit	KLHG-P/GF-80/26Ⅰ	KLHG-P/GF-100/30Ⅰ
Rated heat	Kw	80	100
Power supply	V	380	380
Rated power	K w	26	30
Rated current	A	52	60
Maximum power	Kw	32	36
Maximum current	A	64	72
Rated dehumidification capacity	kg/h	72	90
Rated drying temperature	℃	60	60
Maximum drying temperature	℃	75	75
Operating ambient temperature	℃	-15～40	-15～40
Weight of main engine	kg	1200	1300
Host size	mm	201024001850	201024001850
Auxiliary electric heating	kw	12	12
Maximum working pressure	Mpa	3.0	3.0
noise	dB(A)	65	65

Note:

1. The technical parameters are measured under working conditions: ambient temperature 20 ℃, drying room temperature 50 ℃ - 60 ℃, and drying room heat dissipation coefficient ≤ 0.17W (m.k);

2. The dehumidification amount is measured at the return air humidity of 40 ℃, the outlet air temperature of 50 ℃, and the humidity of 80% RH in the drying room;

3. Because of the product upgrading and updating iteration of Kcalin dryer, the specific parameters shall be subject to the product nameplate.
