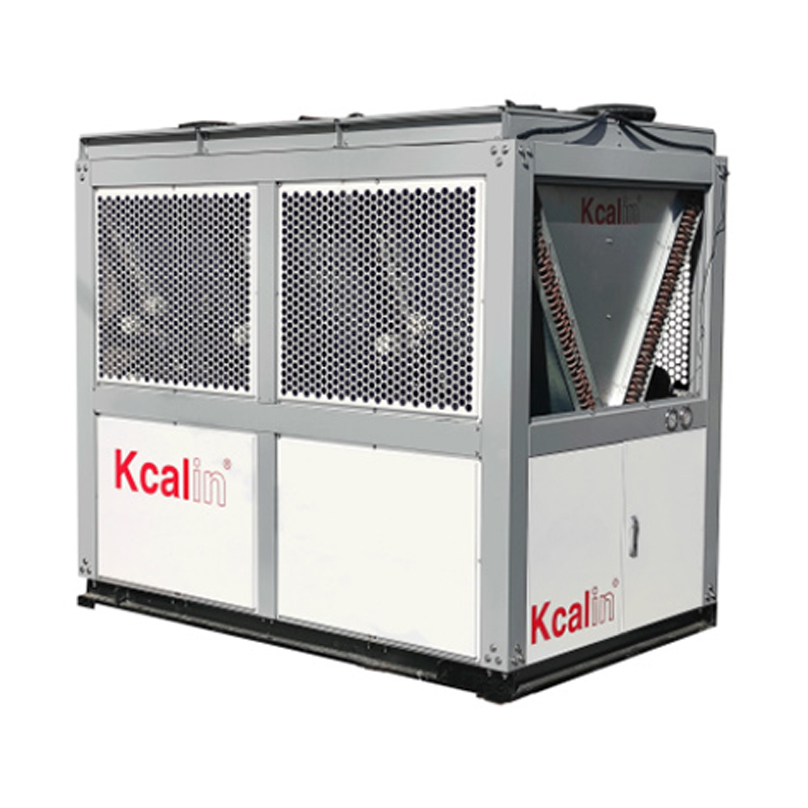

High-efficiency defrosting flexible air source heat pump module unit

Patented STS Technology

based on the principle of space time system technology achieves balanced and efficient continuous heat output

Born For The Extremes

Wide range of application: applicable for areas with ambient temperature above -15 °C, premium performance for the high humidity areas

Better Performance

High efficiency and energy saving: low temperature attenuation, continuous heating, low defrost heat loss, high energy efficiency ratio in HSPF heating season. Switching to chiller operation mode under refrigeration condition achieve higher energy efficiency ratio.

Quieter

Lower noise: high-efficiency ultra-quiet fan

Smarter Operation:

Intelligent control: big data access and automatic compensation configuration, more efficient after-sales service and operation management

High humidity environment heating -- high efficiency defrosting flexible air source heat pump module unit

High efficiency defrosting flexible air source heat pump unit is another masterpiece of cooperation with the research and development team of Tsinghua University. Its technical features are efficient defrosting in high humidity and temperature environment and continuous and stable heating. It is suitable for refrigeration and heating in the south wet and cold areas, and helps to achieve the "30.60" national strategic goal of dual carbon.

This product uses antifreeze as the heat transfer medium of the heat pump system. It makes rational use of the coordinated distribution of the heat produced at the user side and the energy side, and takes into account the defrosting and heating needs of the air source heat pump. It can still operate continuously and stably during heavy frost, which can meet the efficient heating needs of most regions in China (especially in the Yangtze River basin). It is the preferred solution for clean energy and comfortable heating of civil and commercial buildings.

Product characteristics of Kcalin air energy heat pump unit

1) Patent system

The patented thermal system and its control method designed according to the principle of time-space heat allocation not only ensure the continuous and stable heating demand of users, but also ensure the efficient defrosting of the unit after frosting.

2) Accurate defrosting

Real time measurement of the change of heat intake at the air source side during the operation of the unit, directly judging the degree of frosting according to the decay of heat intake, greatly reducing the probability of false defrosting; In addition, measure the change of defrosting heat of the unit in real time, and stop defrosting in time to avoid additional heat loss.

3) Reliable operation

During defrosting, the heat allocation will not affect the stable and continuous operation of the refrigerant system. Compared with the traditional reverse defrosting or hot gas bypass defrosting, the suction and discharge pressure of the compressor will not change, which ensures the continuous and stable operation of the compressor and greatly improves the reliability and operating life of the unit.

4) High efficiency and energy saving

The energy saving efficiency ratio in heating season is higher than the limit value of the latest energy efficiency standard in China; (In normal heating, the nominal energy efficiency ratio is 2.63; the energy efficiency ratio in heating season is 3.30, which conforms to the limit requirements of the latest version of JB/T 14077-2021 Air Source Heat Pump Hot Water Unit for Floor Heating). In addition, when the unit works in frost prone areas, the energy consumption for winter operation can be saved by more than 20%.

5) Wide applicability

Operating temperature range of this series of units: - 20~43 ℃; The unit is equipped with multiple protection controls, and can operate safely and reliably above - 20 ℃ outdoor ambient temperature; It can be widely used in industrial and commercial refrigeration and heating projects in the Yangtze River and Yellow River basins and most areas of North China.

6) Low noise

The STS time-space division multi fan strategy is adopted, so the overall noise of the unit can be well controlled. The noise is less than 57dB (A), and the high and low pressure impact sound generated by reversing is also eliminated.

Parameter List of High Efficiency Defrosting Flexible Air Source Heat Pump Module Unit

model					KLKQ-STS/S-60/16(I)R3	KLKQ-STS/S-90/24(II)R3
refrigeration	Nominal working condition（35℃）		Refrigeration capacity	kW	63	65
			Input power	Kw/kW	16	20
			COPc	kW	3.94	3.25
heating	Working conditions（7℃/6℃）		Heating capacity	kW	69	72
			Input power	Kw/kW	17	23
			COPh	kW	4.06	3.13
	Defrosting condition（2℃/1℃）		Heating capacity	kW	49	60
	Defrosting condition（2℃/1℃）		Input power	kW	16	23
	Nominal working condition（-12℃/-14℃）		Heating capacity	kW	48	53
	Nominal working condition（-12℃/-14℃）		Input power	kW	16	24
	Low temperature condition（-20℃）		Heating capacity	kW	41	47
	Low temperature condition（-20℃）		Input power	kW	16	25
Defrosting method					Integrated wheel defrosting	Integrated wheel defrosting
Air side heat exchanger	Fan		quantity	set	6	4
			Air volume	m³/h.set	6000	9000
			power waste	kW/set	0.28	0.68
Nominal water flow				t/h	10	12
Water side resistance loss				kPa	42	43
Inlet and outlet pipe interface				mm	DN65	DN65
Outdoor noise				dB(A)	61	62
power circuit				V/Hz	380/50	380/50
		form			Totally enclosed turbine type	Totally enclosed turbine type
compressor	quantity			set	1	1
cryogen	Specifications				R410A	R410A
cryogen	Water filling capacity			Kg	28	30
Overall dimension (length * width * height)				mm	260015002100	238015002100
weight				kg	1200	1026

continued

model					KLKQ-STS/S-120/32(I)R3
refrigeration	Nominal working condition（35℃）		Refrigeration capacity	kW	124
			Input power	Kw/kW	32
			COPc	kW	3.88
heating	Working conditions（7℃/6℃）		Heating capacity	kW	127
			Input power	Kw/kW	33
			COPh	kW	3.85
	Defrosting condition（2℃/1℃）		Heating capacity	kW	90
	Defrosting condition（2℃/1℃）		Input power	kW	32
	Nominal working condition（-12℃/-14℃）		Heating capacity	kW	88
	Nominal working condition（-12℃/-14℃）		Input power	kW	32
	Low temperature condition（-20℃）		Heating capacity	kW	75
	Low temperature condition（-20℃）		Input power	kW	32
Defrosting method					Integrated wheel defrosting
Air side heat exchanger	Fan		quantity	set	4
			Air volume	m³/h.set	12000
			power waste	kW/set	0.72
Nominal water flow				t/h	21
Water side resistance loss				kPa	45
Inlet and outlet pipe interface				mm	DN65
Outdoor noise				dB(A)	62
power circuit				V/Hz	380/50
		form			Totally enclosed turbine type
compressor	quantity			set	1
cryogen	Specifications				R410A
cryogen	Water filling capacity			Kg	38
Overall dimension (length * width * height)				mm	248019902460
weight				kg	2300

Note:

1. Product executive standard: JB/T 14070-2022 Ground level Air Source Hot Water Unit for Heating;

2. Test conditions:

Refrigeration: nominal working condition: outlet water temperature 7 ℃, dry bulb temperature 35 ℃

Heating: test conditions: water outlet temperature 35 ℃, dry bulb/wet bulb temperature 7 ℃/6 ℃; The outlet water temperature is 35 ℃, and the dry bulb/wet bulb temperature is 2 ℃/1 ℃;

Nominal working condition: outlet water temperature 35 ℃, dry bulb/wet bulb temperature - 2 ℃/- 3 ℃; Outlet water temperature: 35 ℃, dry bulb/wet bulb temperature: - 7 ℃/- 8 ℃;

3. Please refer to the nameplate of the unit for the performance parameters of the unit. If there is any change in the specification parameters, please refer to the nameplate of the product;

4. The appearance, nozzle size and performance parameters of the unit shall be subject to the actual arrival.
