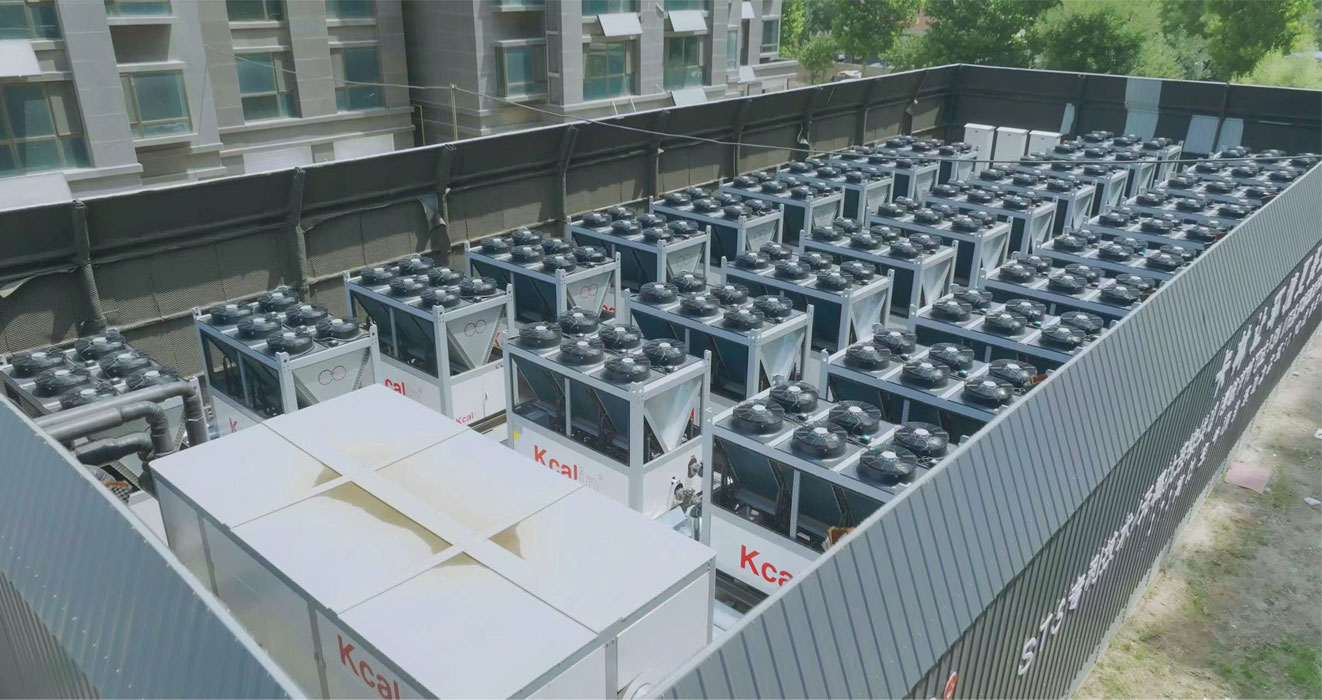

Air source hot water pumps are increasingly widely used in residential, commercial, and industrial buildings due to their energy-saving and environmentally friendly characteristics. To fully leverage its high efficiency and energy-saving advantages, the design of the computer room is crucial. Reasonable computer room design can not only ensure the efficient operation of equipment, but also extend the service life of the system and reduce maintenance costs. Therefore, when planning and designing an air source hot water pump room, a series of key factors must be considered.
Site selection and spatial layout of computer room
Location selection: The location of the air source hot water pump room is the primary consideration in design. The computer room should be located in a well ventilated and well ventilated area, away from sources of pollution, noise, and vibration. In addition, the computer room should be located as close as possible to the water usage point to reduce heat loss in pipelines and increase the delivery pressure of water pumps, thereby improving system efficiency.
Space layout: The internal space layout of the computer room should be reasonably planned to ensure the convenience of equipment installation, operation, and maintenance. There should be corresponding space between each device for air circulation and heat dissipation. The spacing between devices should comply with relevant regulations, and space should be reserved for possible future expansion.
Ventilation and heat dissipation design
Adequate ventilation: Air source hot water pumps generate a certain amount of heat during operation, and good ventilation design can effectively dissipate this heat, preventing equipment from reducing efficiency or malfunctioning due to overheating. The computer room should be equipped with ventilation equipment, such as exhaust fans, ventilation windows, etc., to ensure smooth air circulation and avoid the accumulation of hot air.
Cooling device configuration: In addition to natural ventilation, it is necessary to install a forced ventilation system or cooling equipment when necessary to maintain a suitable temperature in the computer room. Especially in summer or hot climate areas, the design of heat dissipation devices is particularly important, and consideration should be given to adding cooling towers or air coolers to enhance the heat dissipation effect.
Waterway and Circuit Design
Waterway design: The waterway design of the air source hot water pump room should be simple and efficient, avoiding complex pipeline intersections. The material of the pipeline should be corrosion-resistant and have strong compressive strength. The size of the pipeline should be designed according to the flow and pressure requirements of the system to reduce water flow resistance. At the same time, reasonably configure the circulating water pump and expansion tank to ensure the stable operation of the system.
Circuit design: Circuit design is an important part of computer room design, which requires ensuring the reliability and safety of power supply. The distribution cabinet should be arranged in a dry and easy to operate area, and kept at an appropriate distance from the waterway to prevent moisture or water leakage from affecting the circuit. The circuit should have independent protective devices, such as circuit breakers, leakage protectors, etc., to prevent safety hazards caused by electrical faults.
Safety and protective measures
Safe passage and emergency exit: Clear safe passages should be set up in the computer room to ensure that staff can evacuate quickly in emergency situations. The passage should not be obstructed by equipment or other objects, and clear emergency exit signs should be set up in the computer room, equipped with necessary emergency lighting.
Fire prevention measures: The fire prevention design of the air source hot water pump room is crucial. Fire alarm systems, automatic sprinkler systems, fire extinguishers and other fire-fighting facilities should be installed in the computer room. The walls, floors, and ceilings of the computer room should be made of fire-resistant materials, and fire-resistant sealing materials should be used at the points where cables and pipelines pass through the walls to prevent the spread of fire.
Waterproof and drainage design: To prevent water pipe rupture or leakage accidents, the floor of the computer room should be designed with a certain slope and drainage outlets should be set up to ensure that accumulated water can be quickly discharged. Waterproof measures should be taken at the bottom of the equipment, and electrical equipment should be installed in areas higher than the ground to avoid short circuits or equipment damage caused by water leakage.
Intelligence and automation control
Intelligent monitoring system: With the development of technology, more and more air source hot water pump rooms are adopting intelligent control systems. By installing sensors, monitoring cameras, and other equipment, key parameters such as temperature, humidity, water pressure, and voltage in the computer room can be monitored in real time. Once an abnormality occurs, the system will automatically alarm and record data for subsequent fault analysis and maintenance.
Automation control system: The automation control system can automatically adjust the operating status of the air source hot water pump according to changes in the external environment and load, optimize the operating efficiency of the equipment, and reduce energy waste. Intelligent control not only improves the operational efficiency of the system, but also reduces the complexity of manual operations and minimizes the risk of human error.
The design of the air source hot water pump room directly affects the operational efficiency and safety of the entire heating system. Therefore, in the design process, it is necessary to comprehensively consider multiple aspects such as location selection, ventilation and heat dissipation, water circuit, safety protection, and intelligent control. Only by fully considering these factors during the design phase can we create an efficient, energy-saving, and safe air source hot water pump room, ensuring the long-term stable operation of the system, providing reliable hot water supply for buildings, and helping to save energy and reduce emissions, achieving the goal of green environmental protection.
