Mine ventilation system is an important guarantee for mine safety production, which ensures fresh air in miners' working environment, eliminates harmful gases and dust, and regulates temperature and humidity. A complete mine ventilation system usually includes the following parts:
Main ventilator: The main ventilator is an important equipment of mine ventilation system, which is responsible for conveying fresh air to the underground and discharging waste gas out of the well. The main ventilator is usually installed in the wellhead or the ground ventilation room, and it needs to be adjusted according to the scale of the mine and the ventilation demand during operation.
Ventilation duct: Ventilation duct is the main channel for air circulation, including intake duct and exhaust duct. The air inlet duct is used to transport fresh air from the ground to the underground working area, and the exhaust duct discharges the underground waste gas, dust and harmful gases to the ground. The design and layout of ventilation duct need to consider the structure of mine and the distribution of working area.
Air door: Air door is used to control and adjust the air flow and direction in the ventilation system. According to needs, air doors can be divided into regulating air doors and fire doors. The damper is used to balance the air volume of each ventilation branch, and the fire damper is used to isolate the fire source in case of fire and prevent the fire from spreading.
Ram: Ram is a flexible ventilation duct, which is often used for temporary or local ventilation. The air duct is usually made of light material, which is convenient for installation and movement, and is mainly used for ventilation of working face or temporary operation area.
Local ventilator: Local ventilator is used to provide auxiliary ventilation in some specific areas of mine (such as working face, roadway or local operation point). Local ventilators can increase the air flow in these areas and ensure the air quality in the working environment.
Ventilation facilities: Ventilation facilities include various auxiliary equipment, such as wind barriers, air duct supports, air volume adjustment devices, etc., which are used to optimize the ventilation effect and ensure the normal operation of the ventilation system. These facilities can help adjust airflow, balance air volume and improve ventilation efficiency.
Ventilation monitoring system: the ventilation monitoring system is used to monitor the air quality, wind speed, air volume and harmful gas concentration in the mine in real time. The monitoring system usually includes various sensors and monitoring instruments, which can provide timely early warning information and ensure the safety of miners.
Explosion-proof devices: Explosion-proof devices are used to prevent explosion accidents in mines, mainly including explosion doors, explosion-proof walls and explosion-proof ventilation devices. These devices can effectively isolate the explosion area and prevent the explosion from spreading to other areas.
Drainage system: The drainage system is used to drain the accumulated water in the mine and prevent the underground equipment and passages from flooding. Drainage system usually includes drainage pipes, pumps and pools.

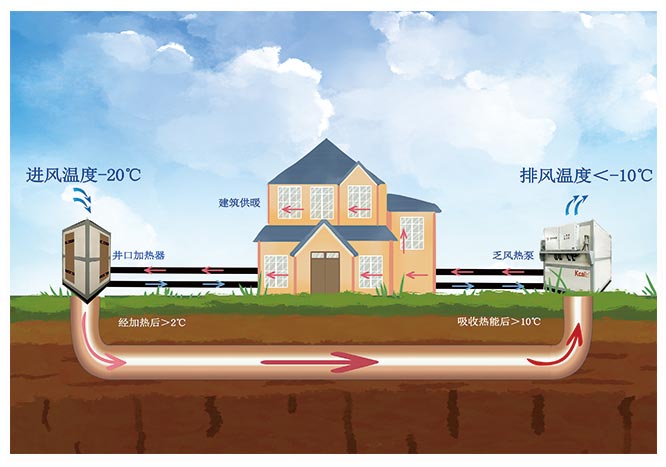

Heat exchange system: In some special cases, the mine ventilation system may also include a heat exchange system to adjust the temperature and humidity of underground air and improve the comfort of the working environment.
Mine ventilation system is a complex and comprehensive system, including main ventilator, ventilation duct, air door, air duct, local ventilator, ventilation facilities, ventilation monitoring system, explosion-proof device, drainage system and heat exchange system. All parts cooperate with each other to ensure the circulation and quality of air in the mine and the health and safety of miners. In practical application, the design and maintenance of ventilation system need to be optimized according to the specific conditions of the mine to ensure its efficient and stable operation.
