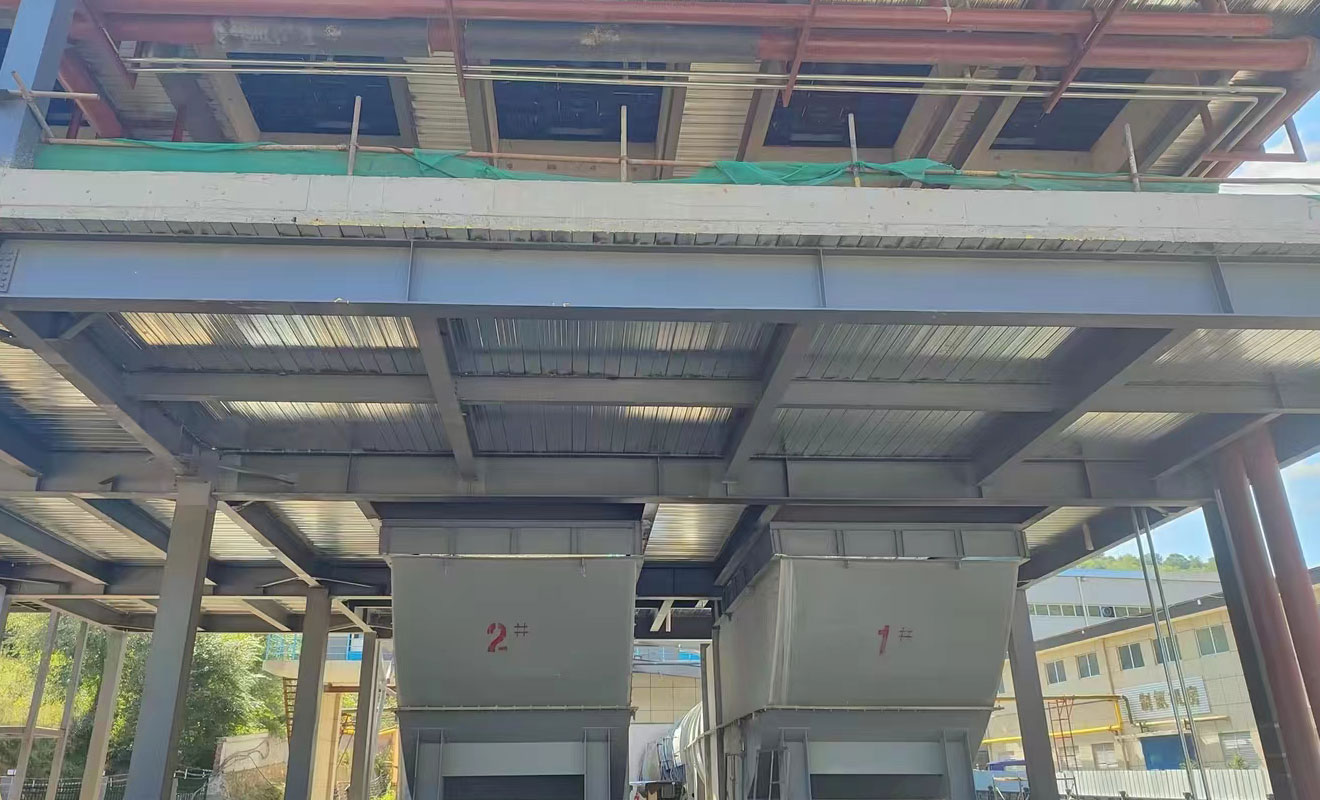

In the context of today's energy challenges and environmental issues, the mining industry is actively seeking innovative methods to improve energy efficiency and reduce dependence on traditional energy. A highly regarded innovative technology, the mine exhaust air waste heat hybrid heat pump system, is a hybrid heat pump system that combines the mine exhaust air waste heat with the heat pump system to provide clean heating and hot water for the mining industry.
Exhaust air waste heat and heat pump system: integrated into one
Mine ventilation is usually referred to as the exhaust gas generated during mining operations. These depleted winds contain a large amount of thermal energy, but traditionally they are discharged into the atmosphere and considered as a source of waste thermal energy. However, exhaust heat energy is a valuable resource that can be recovered and reused through appropriate technologies.
Heat pump systems are highly energy-efficient heating and hot water technologies. They use the movement principle of thermal energy to move low-temperature thermal energy from one place to another, providing higher temperature thermal energy. This technology is suitable for the recovery of low-temperature waste heat, such as exhaust heat energy.
The hybrid heat pump system combines waste heat from exhaust air with heat pump technology to form an efficient energy recovery system. The working principle is as follows:
Exhaust air collection: The initial step involves collecting exhaust air, which can be achieved through the ventilation system inside the mine. The exhaust gas usually contains high humidity and low temperature exhaust gas.
Evaporation and heat transfer: The exhaust air is introduced into the evaporator of the heat pump system. In the evaporator, the heat energy in the exhaust air is used to evaporate low boiling point working fluids, such as refrigerants. This leads to a decrease in the temperature of the exhaust gas, while the working fluid becomes gaseous.
Compression and heating: The gaseous working fluid enters the compressor and is compressed, increasing the temperature and pressure.
Condensation and heat release: High temperature and high pressure gases pass through the condenser, releasing heat and transferring it to water supply or other working fluids. This will cause the working fluid to become liquid.
Expansion and cooling: The liquid working fluid passes through the expansion valve, reducing the temperature and pressure, preparing to re-enter the evaporator and repeat the cycle.
This process continuously circulates, achieving the recovery and reuse of waste heat from exhaust air, providing hot water heating or other thermal energy needs.
The application of a mixed heat pump system for mine exhaust air and waste heat extraction has brought a series of advantages and potential benefits to the mining industry:
Energy efficiency improvement: By utilizing heat pump technology, the system can improve the energy efficiency of spent air waste heat and reduce dependence on traditional fuels.
Environmental benefits: Recycling waste heat from exhaust air can help reduce carbon emissions in the mining industry, reduce environmental impacts, and meet sustainable development goals.
Economic benefits: Although the initial investment is relatively high, the long-term economic benefits of the hybrid heat pump system are obvious. Reducing energy costs, extending equipment lifespan, and improving the working environment can improve production efficiency and bring more profits to the company.
Reducing heating burden: Traditional heating methods are expensive, while hybrid heat pump systems have lower operating costs, reducing the financial burden on mining companies.
Improving energy self-sufficiency: Mining companies can better self supply energy, reduce dependence on external energy supply, and increase self-sufficiency.
The mixed heat pump system for mine exhaust air and waste heat is still under continuous development, and new technologies and innovations are constantly emerging. Mining companies should actively invest in research and development to improve system efficiency and applicability. At the same time, sharing practices and successful cases will accelerate the adoption of this clean heating technology.
The hybrid heat pump system represents a major innovation in the mining industry, which not only improves energy efficiency but also reduces environmental impact. Mining companies should actively consider adopting this technology to achieve sustainable development goals and play a positive role in environmental protection and social responsibility. Clean heating not only brings economic benefits to mining, but also lays a solid foundation for the sustainable future of the entire industry. Let's work together for the future of clean heating.
