Introduction to commonly used technologies and equipment for recovering waste heat from mine exhaust

Date:2024-01-19 15:30:56

Mine exhaust heat, as a widely overlooked energy resource, is gradually receiving attention from mining enterprises. Effectively recovering and utilizing the waste heat of mine exhaust not only reduces energy costs, but also has a positive impact on environmental protection and sustainable development.

Overview of mine exhaust heat recovery technology

Traditional heat storage technology: Traditional heat storage technology is one of the applications of mine exhaust heat recovery. By using equipment such as heat storage tanks and hot water tanks, high-temperature waste heat from exhaust air is stored for heating or other industrial purposes. This method is simple and feasible, but it has shortcomings such as low heat storage efficiency and periodic performance.

Heat exchange technology: Heat exchange technology is the focus of mine exhaust heat recovery. Using a heat exchanger to exchange the waste heat of mine exhaust with the medium that needs to be heated, achieving the effect of energy transfer. Traditional heat exchange technologies mainly include shell and tube heat exchangers, plate heat exchangers, etc. However, with the development of technology, new and efficient heat exchange technologies such as spiral plate heat exchangers and membrane heat exchangers are gradually being applied to the recovery of waste heat from mine exhaust air.

Cogeneration technology: Cogeneration technology organically combines the generation of thermal and electrical energy, and is an efficient way of comprehensive energy utilization. By using equipment such as thermal motors and thermoelectric reactors, the waste heat from mine exhaust is converted into electricity, and the generated waste heat can be recycled for heating or other industrial processes, achieving dual energy utilization.

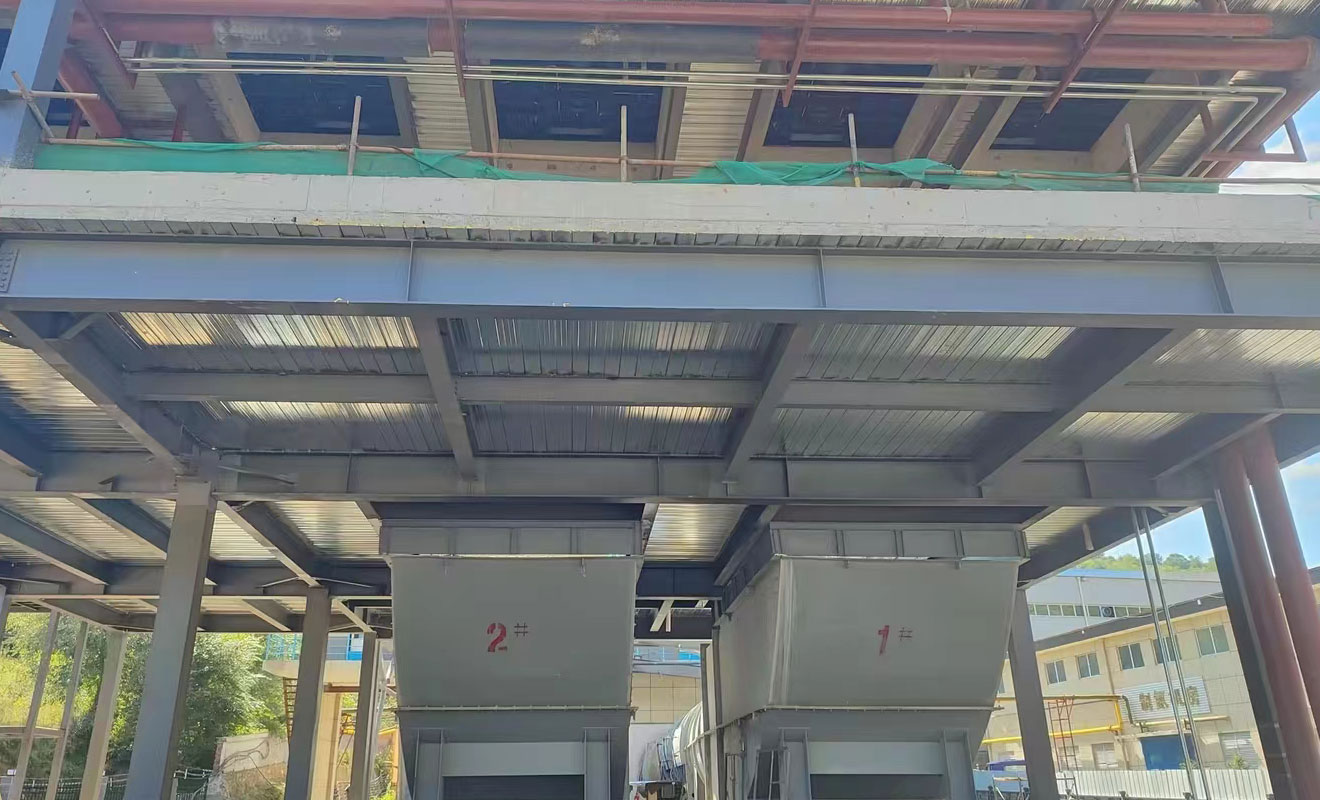

Introduction to commonly used technologies and equipment for recovering waste heat from mine exhaust air

Heat pump technology: Heat pump technology is an efficient means of using low-temperature heat sources to provide heat. Through heat pump equipment, the low-temperature heat energy from the waste heat of mine exhaust can be upgraded to higher temperature heat energy for heating or other purposes. Heat pump technology has the advantages of strong adaptability and high energy efficiency, gradually becoming an emerging choice for mine exhaust heat recovery.

Detailed explanation of equipment for mine exhaust heat recovery device

Heat exchanger: Heat exchanger is one of the indispensable equipment in the recovery of waste heat from mine exhaust air. Common heat exchangers include plate heat exchangers, shell and tube heat exchangers, spiral plate heat exchangers, etc. These devices optimize their structure and materials, improve heat exchange efficiency, and achieve efficient recovery of waste heat from mine ventilation.

Thermal power unit: Thermal power unit is an important component of cogeneration technology, including thermal power stack, generator, and other parts. The waste heat from mine ventilation is converted into electrical energy through thermoelectric reactors, providing clean electricity for the mine. Modern thermoelectric units have a compact structure, high efficiency, and are suitable for mines of different scales.

Heat pump device: The heat pump device consists of an evaporator, compressor, condenser, and expansion valve, and is a powerful tool for achieving efficient recovery of waste heat from mine exhaust air. Through heat pump technology, the low-temperature waste heat of mine exhaust air is upgraded into energy suitable for heating or other high-temperature needs, achieving effective energy conversion and comprehensive utilization.

Heat storage system: The heat storage system mainly includes equipment such as heat storage tanks and heat exchangers, which are used to store high-temperature waste heat from exhaust air. These devices improve the storage efficiency of thermal energy by optimizing materials and structures, allowing mines to flexibly allocate stored thermal energy when needed.

Application fields of mine exhaust heat recovery

Heating system: Applying the waste heat of mine exhaust air to the heating system is one of the more intuitive and extensive application areas. Through excellent heat exchange technology and heat pump technology, mines can provide sustainable heating energy for themselves, achieving winter heating and thermal energy demand during production processes.

Industrial production process: Mine exhaust heat recovery technology can also be widely applied in industrial production processes. Through cogeneration technology, waste heat can not only be converted into electrical energy, but also be utilized for steam generation, providing high-temperature and high-pressure steam required in industrial processes.

New energy power generation: The recovery of waste heat from mine ventilation can provide important support for new energy power generation. By combining with new energy sources such as solar and wind energy, waste heat recovery technology can compensate for the instability of these new energy sources and improve the reliability and stability of the power grid.

The development of waste heat recovery technology for mine ventilation is not only necessary for the green development of the mining industry, but also an innovative path to address energy crises and achieve sustainable development. Through continuous technological innovation and equipment optimization, the recovery of waste heat from mine ventilation will bring considerable economic benefits to mining enterprises, while also making positive contributions to promoting clean energy utilization and reducing greenhouse gas emissions. In the future, with the development of technology and the pursuit of sustainable development by society, the technology of mine exhaust heat recovery will have a broader application prospect.

:
