The coal mine pressure fan is an important component of the coal mine ventilation system, used to supply fresh air to underground tunnels and exhaust exhaust gases. During the operation of the compressed air fan, a large amount of waste heat is generated. In order to efficiently utilize these waste heat resources and improve energy efficiency, coal mine compressed air fan waste heat utilization equipment has been introduced.
When the coal mine pressure fan supplies fresh air to the underground tunnel, the operation of its motor and compressor will generate a large amount of waste heat. These waste heat mainly manifests in two aspects:
Electric motor waste heat: The electric motor of the compressed air fan generates heat during operation, with some of the energy converted into useful work, while the other part of the energy is emitted in the form of waste heat.
Compressor waste heat: During the compression process of the compressor, the gas is compressed and the temperature increases, resulting in a large amount of waste heat.

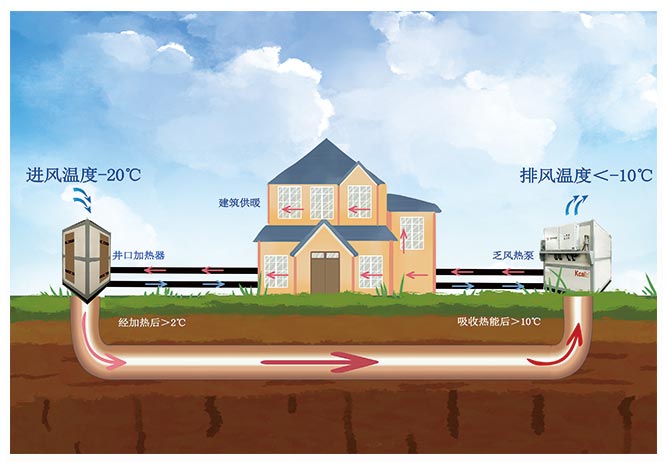

Working principle of waste heat utilization equipment
The main working principle of waste heat utilization equipment for coal mine compressed air fans is to recover the waste heat generated by the compressed air fan through a heat exchanger and convert it into useful energy. This device typically consists of the following main components:
Heat exchanger: Heat exchanger is an important component of waste heat utilization equipment for coal mine compressed air fans. It transfers the waste heat generated by the compressed air fan to the working medium (such as water or air) through conduction or convection, thereby increasing the temperature of the working medium.
Heat carrying medium pipeline: After receiving waste heat, the working medium in the heat exchanger is transported to the target location through the pipeline to achieve energy transfer and utilization.
Energy conversion device: The working medium that receives waste heat is converted into useful forms through the action of an energy conversion device. For example, evaporating water into steam through a steam boiler or using hot water for heating.
Control system: Coal mine compressed air fan waste heat utilization equipment is usually equipped with a control system to monitor and control the operating status of the equipment, in order to ensure the safe and stable operation of the equipment.
The working process of waste heat utilization equipment for coal mine compressed air fans mainly includes the following steps:
Waste heat recovery: During the operation of the compressed air fan, the generated waste heat is recovered through a heat exchanger, causing the temperature of the working medium to rise.
Energy transfer: The recovered waste heat is transferred to the target location through a heat carrying medium pipeline, such as a steam boiler or heating system.
Energy conversion: At the target location, the energy of waste heat is converted into useful forms through energy conversion devices, such as evaporating water into steam or using hot water for heating.
Control and monitoring: The control system equipped with the equipment monitors and controls the operating status of the equipment to ensure its safe and stable operation.
Advantages of waste heat utilization equipment for coal mine compressed air fans
Energy conservation and environmental protection: If the waste heat generated by coal mine pressure fans is not utilized, it will cause energy waste and environmental pollution. The use of waste heat equipment can convert these waste heat into useful energy, thereby improving energy utilization efficiency, saving energy resources, reducing dependence on traditional energy, and achieving the goal of energy conservation and environmental protection.
Economic benefits: By utilizing waste heat from coal mine compressed air fans, the energy cost of coal mines can be reduced. The utilization of waste heat not only reduces the purchase and consumption of energy, but also generates economic benefits through energy recovery, improving the economic benefits of coal mines.
Increase equipment stability: Waste heat utilization equipment can stably recover and utilize the waste heat generated by coal mine compressed air fans. The recovery and utilization of these waste heat can reduce the heat generated during the operation of the compressed air fan, thereby reducing the load of the equipment, increasing its stability and lifespan.
The waste heat utilization equipment of coal mine compressed air fans is an important energy recovery technology. By recycling and utilizing the waste heat generated by compressed air fans, energy utilization efficiency can be improved, energy resources can be saved, and a win-win situation of energy conservation, environmental protection, and economic benefits can be achieved. However, its application requires certain technical support and initial investment, and its application scenarios are limited. In future development, its application fields can be further expanded through technological innovation and engineering optimization to achieve broader energy utilization and environmental protection goals.
